MHM Air Cooled Scroll Chiller

Brand: MHM · Series: ACS Series · Made in: Assembled in Dhaka

Roof-mounted air cooled chiller with hermetic scroll compressors and microchannel condenser coils. No cooling tower, no water treatment — chilled water from day one.

Cooling capacity30–850 TR

CompressorScroll · 2 circuits

RefrigerantR-410A

Power supply380–415 V · 3 Ph · 50 Hz

Chilled water7 °C out / 12 °C in

Controller[Microprocessor, Modbus]

Request a quote Download catalogue WhatsApp an engineer

Genuine spare parts and Annual Maintenance Contract available from our Dhaka service team.

Overview Specifications Features Downloads Service

Overview

Chilled water without a cooling tower

The MHM Air Cooled Scroll Chiller is a packaged, factory-assembled unit that rejects heat straight to ambient air through V-shaped microchannel condenser coils and axial fans. Hermetic scroll compressors on independent refrigerant circuits stage capacity to the actual load, so part-load efficiency stays high through the seasonal swing of Dhaka's climate. Because there is no condenser water loop, the installation needs only a chilled-water connection and a three-phase supply.

It fits where roof or yard space is available but make-up water, chemical dosing and tower cleaning are not wanted — mid-size textile dyeing, plastic moulding, pharmaceutical HVAC and commercial buildings. MHM Engineering selects the model against your measured load, supplies the unit with insulated chilled-water piping and pumps, commissions it on site and supports it afterwards with genuine spare parts and an annual maintenance contract from our own team in Mirpur.

Where it is used

Typical applications for air cooled scroll units

Textile dyeing and finishing
Plastic injection and blow moulding
Pharmaceutical HVAC and clean rooms
Commercial buildings and offices
Food processing and cold storage

Not sure which chiller fits? Talk to an engineer

Features

Built for continuous industrial duty

Every unit is selected for Bangladeshi ambient conditions and supported locally, so the chiller keeps running through the hot season.

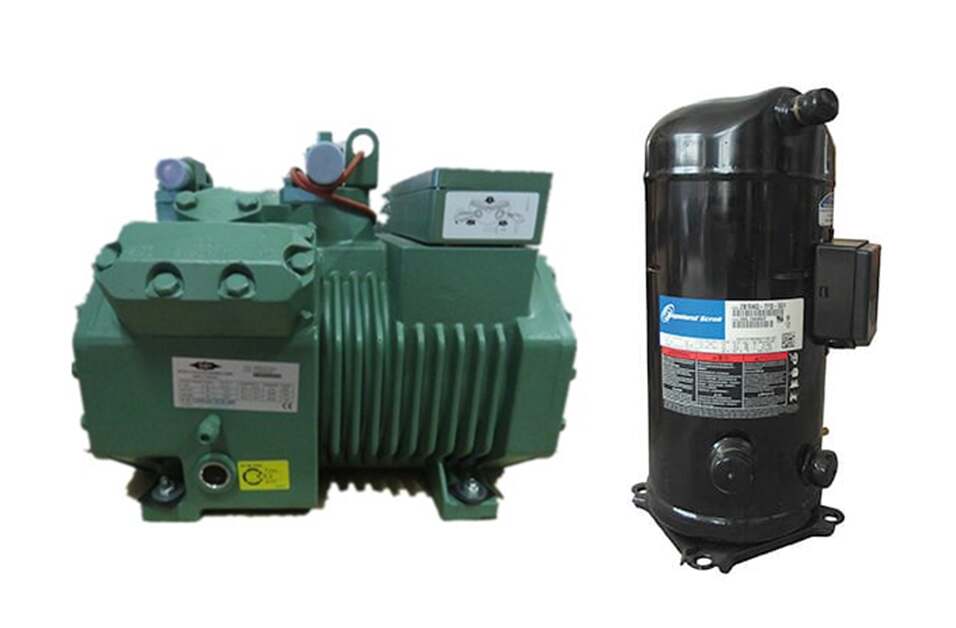

Scroll compressors

Hermetic scroll compressors on 2 independent refrigerant circuits give staged capacity, quiet running and fewer moving parts to service over the life of the unit.

Microchannel condenser

All-aluminium microchannel coils reject heat with a smaller refrigerant charge and lower air-side pressure drop than conventional tube-and-fin condensers.

Intelligent controller

Microprocessor controller with chilled-water setpoint control, compressor sequencing, alarm history, run-hour logging and a Modbus interface for your BMS.

Low-noise axial fans

Aerofoil axial fans with EC axial motors keep sound levels suited to rooftops beside offices, with head-pressure control for stable operation in cooler months.

Quick-connect hydronics

Grooved chilled-water connections, factory-fitted flow switch and strainer make site piping fast and clean. Optional integrated pump and buffer tank on request.

Local service in Dhaka

Commissioning, annual maintenance contracts and genuine spare parts from MHM Engineering's own service engineers based in Mirpur, Dhaka — no waiting on a foreign agent.

Specifications

Model range

Nominal ratings at 7 °C / 12 °C chilled water and 35 °C ambient. Ask for a selection at your actual site conditions.

Model	Cooling capacity (TR)	Power input (kW)	Compressors	Fans	Dimensions L×W×H (mm)	Weight (kg)
MHM-ACS-030	30	36.2	2	4	2450 × 1120 × 2150 × 1,180 × 45	52.8
MHM-ACS-045	2	4	2900 × 1120 × 2150	1,420	60 × 68.5 × 4	6
MHM-ACS-060	3600 × 1180 × 2250	1,890	90	102	4 × 8 × 4400 × 2200 × 2300	2,760
MHM-ACS-090	120	136	4	10	5200 × 2200 × 2300 × 3,340 × 160	181
MHM-ACS-120	6	12	6200 × 2200 × 2350	4,150	30 × 36.2 × 2	4
MHM-ACS-160	2450 × 1120 × 2150	1,180	45	52.8	2 × 4 × 2900 × 1120 × 2150	1,420
